2025 New Holland WORKMASTER 120 - NEW43539

THE TRADITION OF VALUE CONTINUES

WORKMASTER™ tractors meet the needs of a wide range of customers. Designed for those with a keen eye for value, the new WORKMASTER 95, 105 and 120 provide unmatched comfort, simplicity and visibility with a low cost of ownership.

• Powerfully Efficient: WORKMASTER 95, 105 and 120 tractors are powered by 207-cubic-inch (3.4L), 4-cylinder engines built by Fiat Powertrain Technologies (FPT). These free breathing engines use 4 values per cylinder and a high pressure common rail, direct injected, electronically controlled, fuel system to deliver clean, fuel-efficient power.
• High-productivity Power Shuttle: The 12x12 hydraulic power shuttle transmission provides four synchronized gears in three non-synchronized ranges, and a 19-mph (30-kph) travel speed. It is the perfect solution for customers looking for maximum productivity in a utility tractor, or for those who make direction changes often in applications such as loader work.

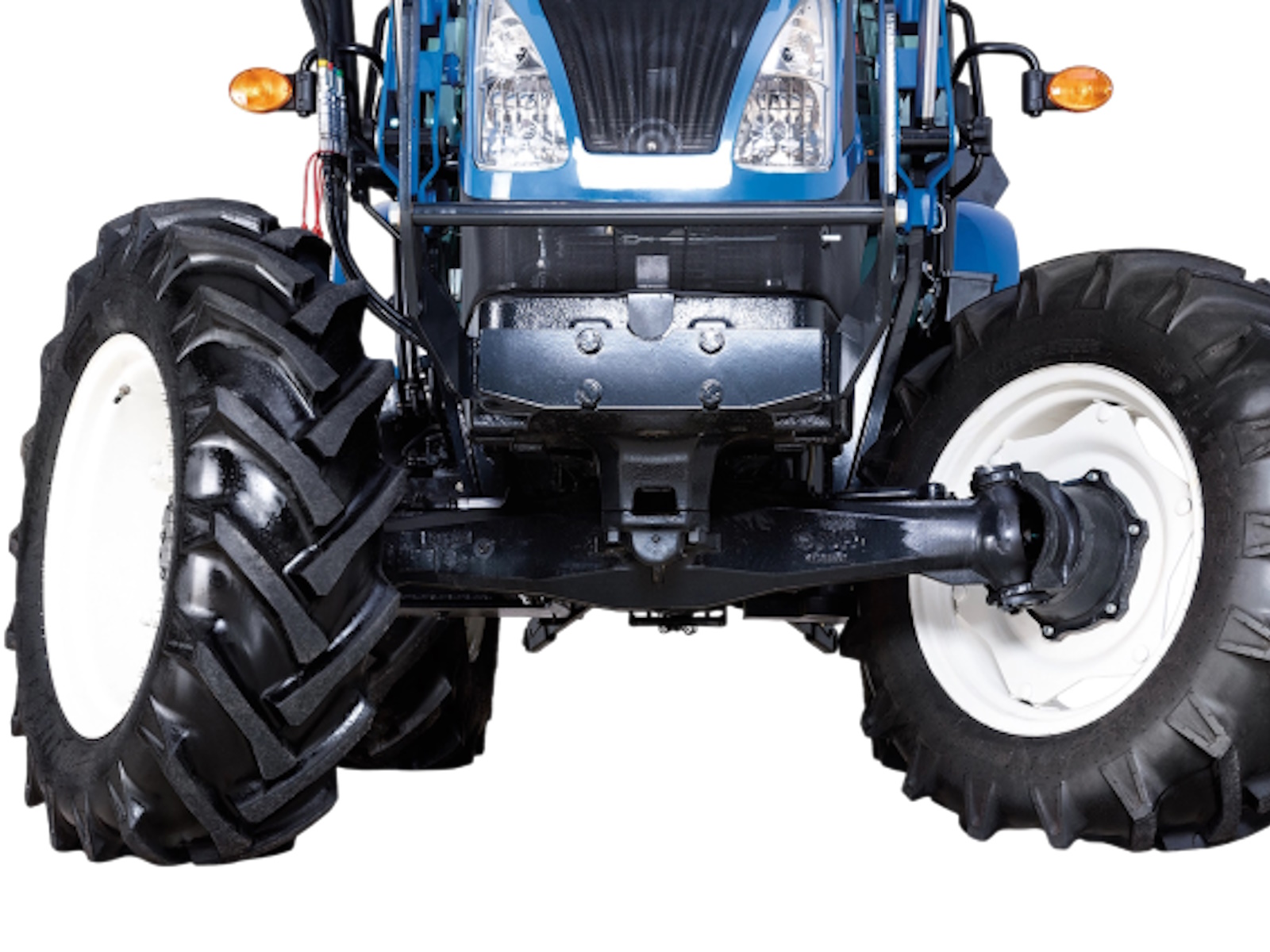

• Traction Enhancing Four-wheel Drive (4wd): Every WORKMASTER comes standard with traction enhancing four-wheel drive (4WD) as standard equipment to help power you through tough spots.
• Independent Power Take Off (pto): WORKMASTER 95, 105 and 120 tractors feature a robustly designed, fully independent, multi-plate wet clutch PTO (power take off) for years of reliable service. Choose from 540-rpm, 540-rpm with fuel saving 540E (economy) or reversible 540/1000 rpm to best suit your implements and attachments.

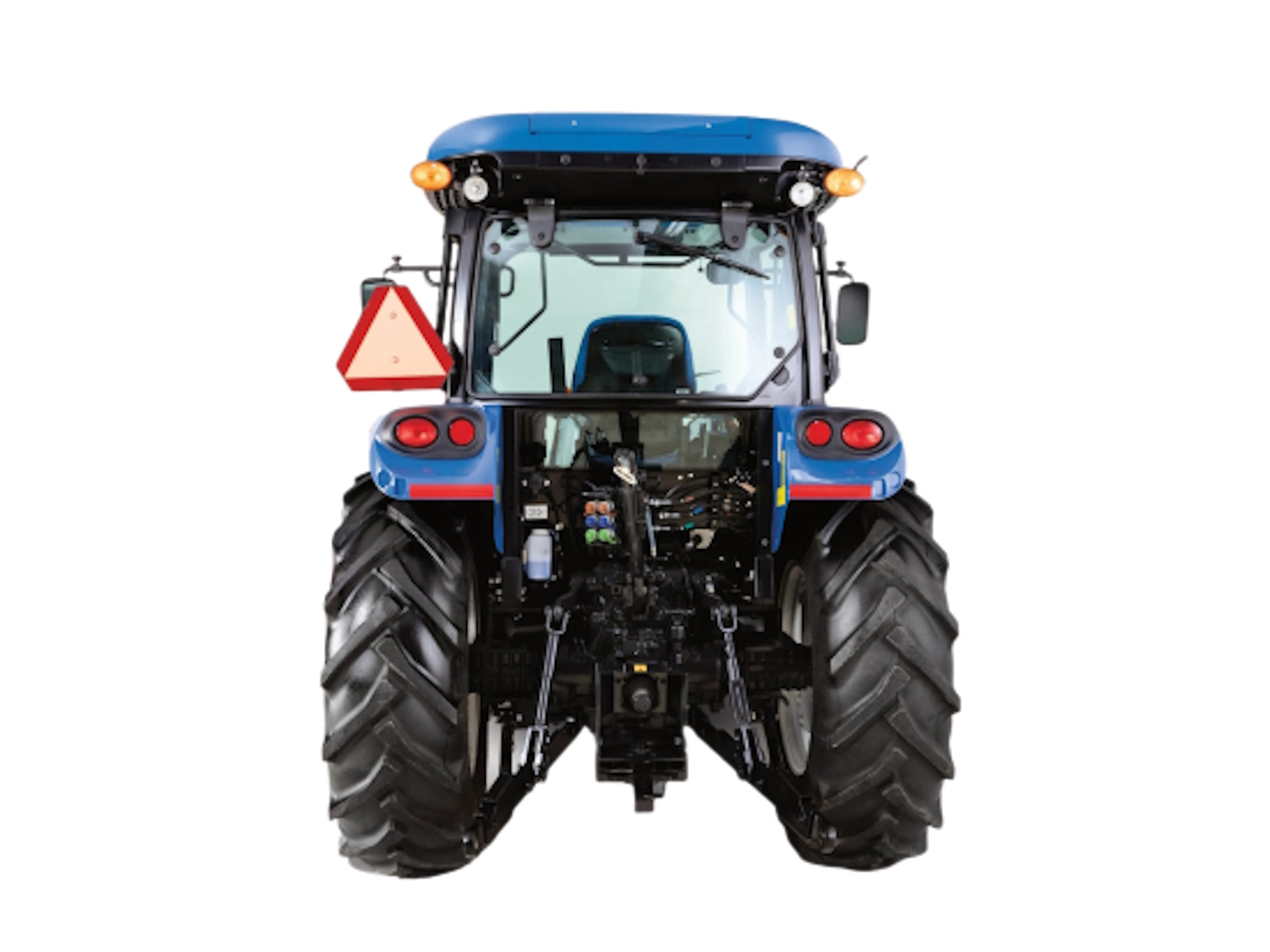

• Heavy-duty Design, Easy Hook-up: A 3,200-pound rear hitch lift capacity allows your WORKMASTER tractor to handle large implements while standard draft control allows more efficient use of ground engaging tools. Add the optional auxiliary lift ram to increase capacity to 6,200 pounds. Standard draft control, flexible link ends and telescopic stabilizers make implement hookup a breeze.

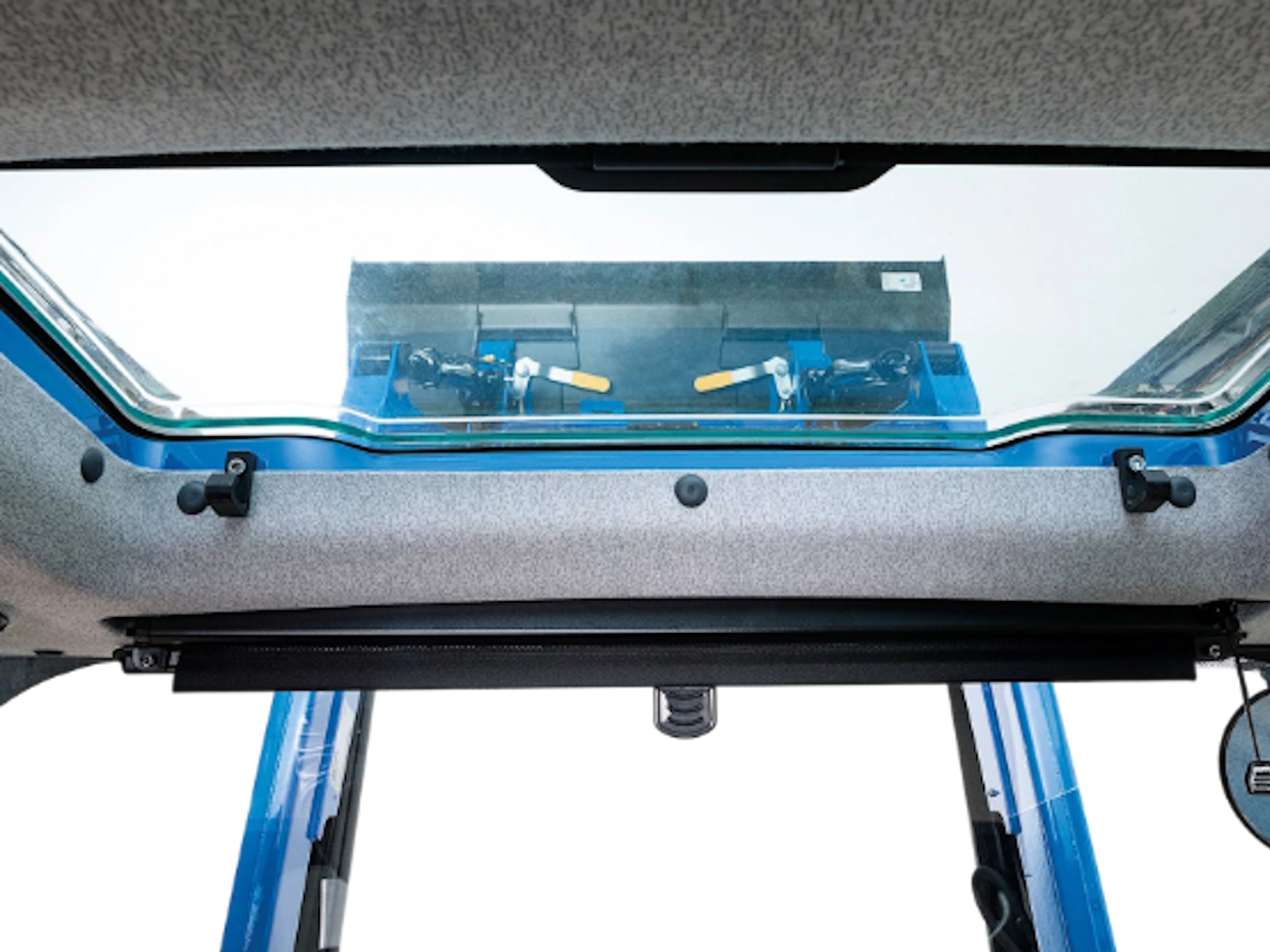

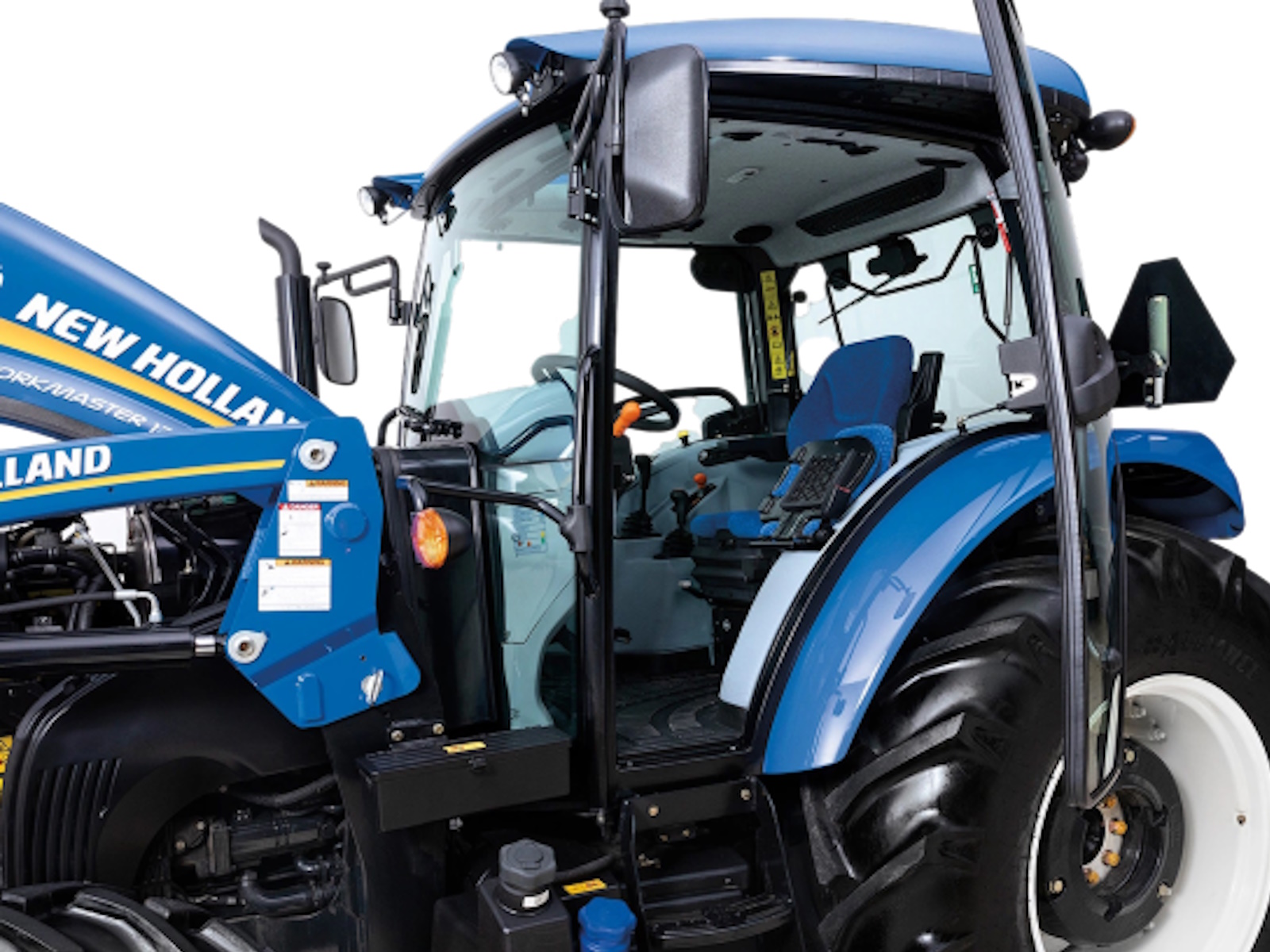

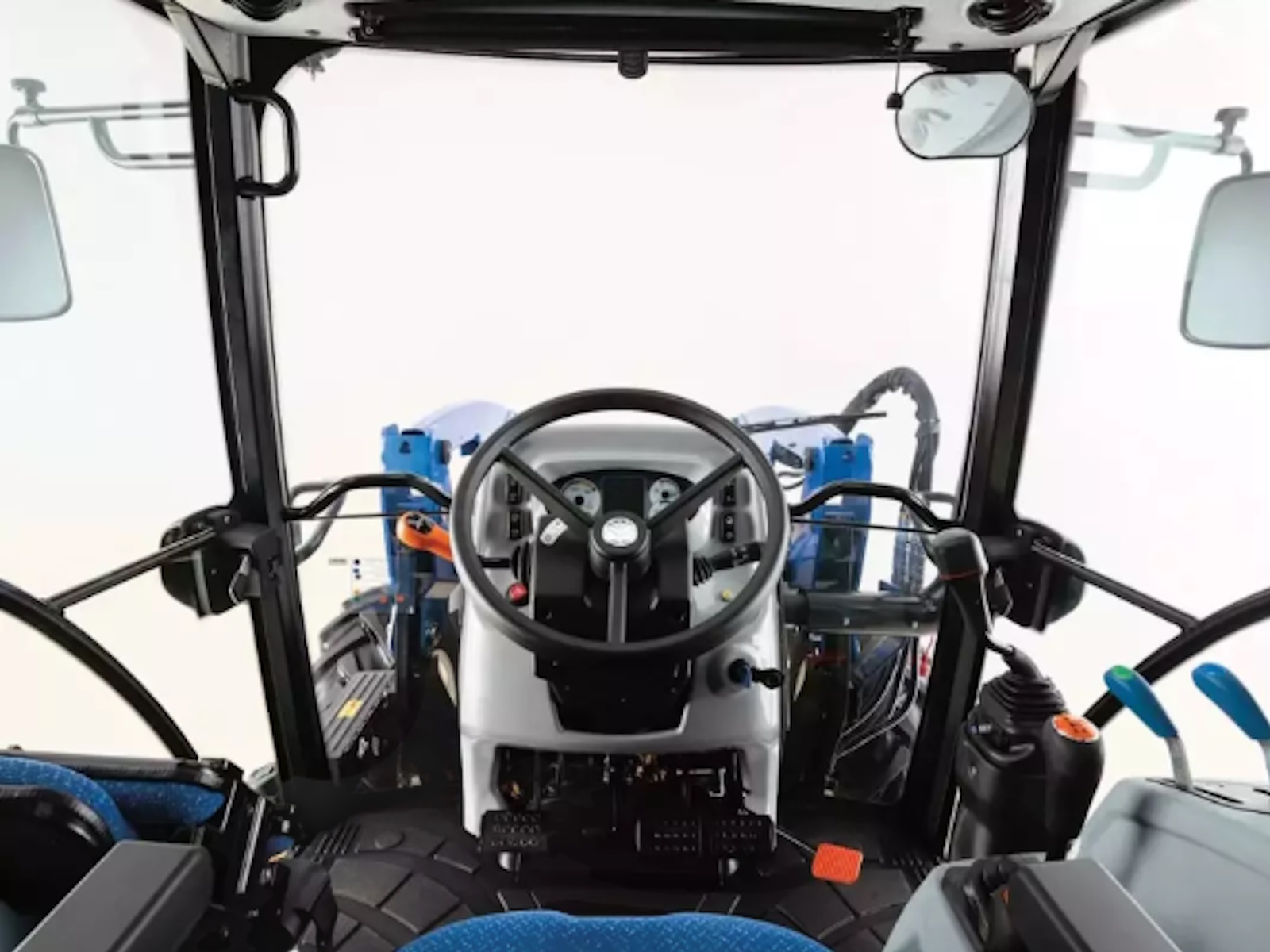

• Best-in-class Value Cab: Value and comfort are not mutually exclusive. The all-weather WORKMASTER four-post cab protects you from the elements and is loaded with comfort features not found on other value cabs. The wide-entry and flat deck allows for easy entry and exit and provides added foot room. There’s comfortable seating for two with a cloth high-back, air suspension seat and instructor seat that folds back for additional storage when not in use.

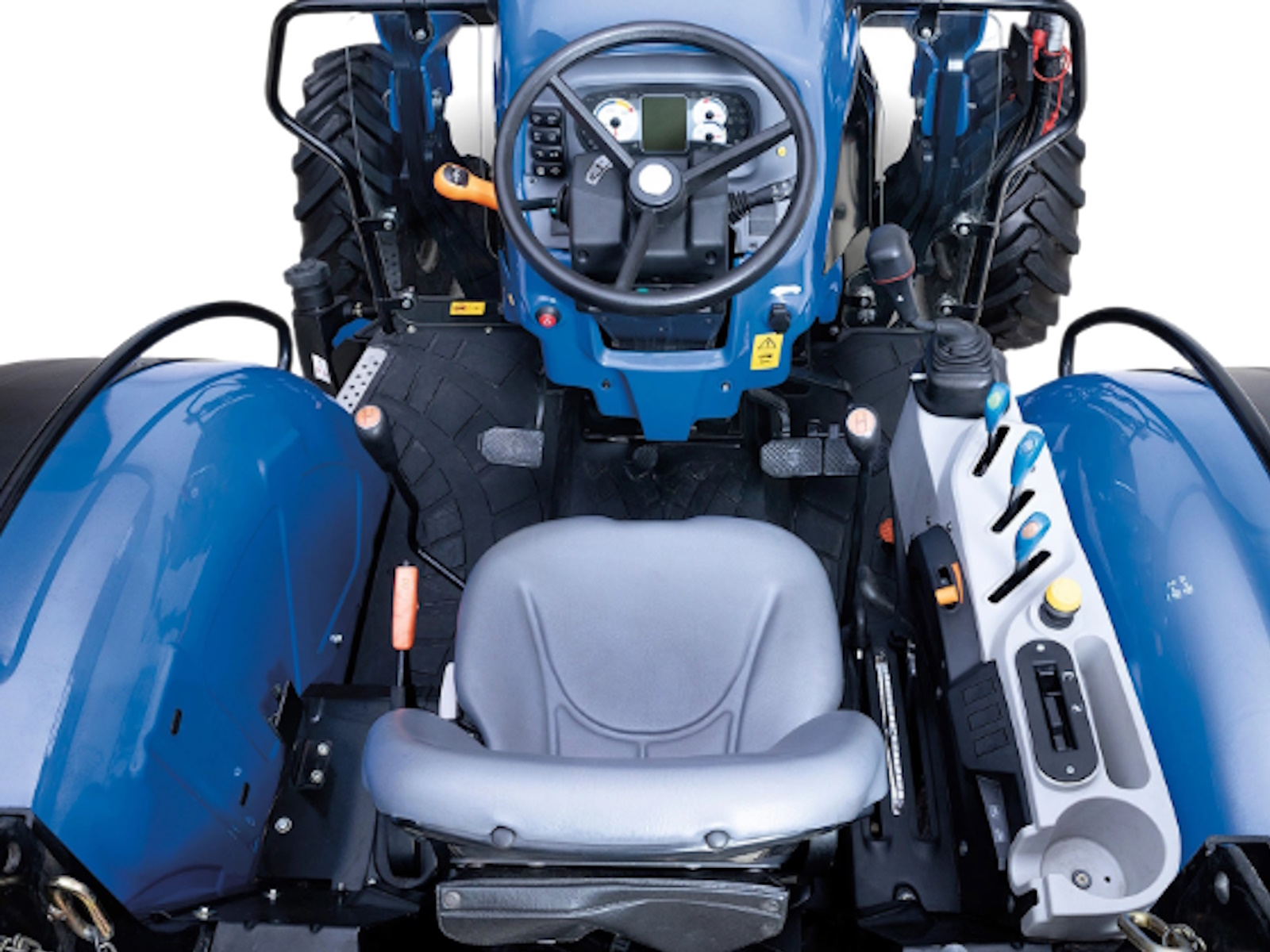

• Comfortable Open Station Platform: For added economy, a flat-deck all purpose ROPS platform configuration is available. The semi-straddle platform is ergonomically designed to ensure all-day comfort. The right-hand console contains most controls close to the operator, with more commonly used controls right up front where needed. This console also contains a cup holder, cell phone slot and two USB ports, so you can stay hydrated and connected throughout the day.

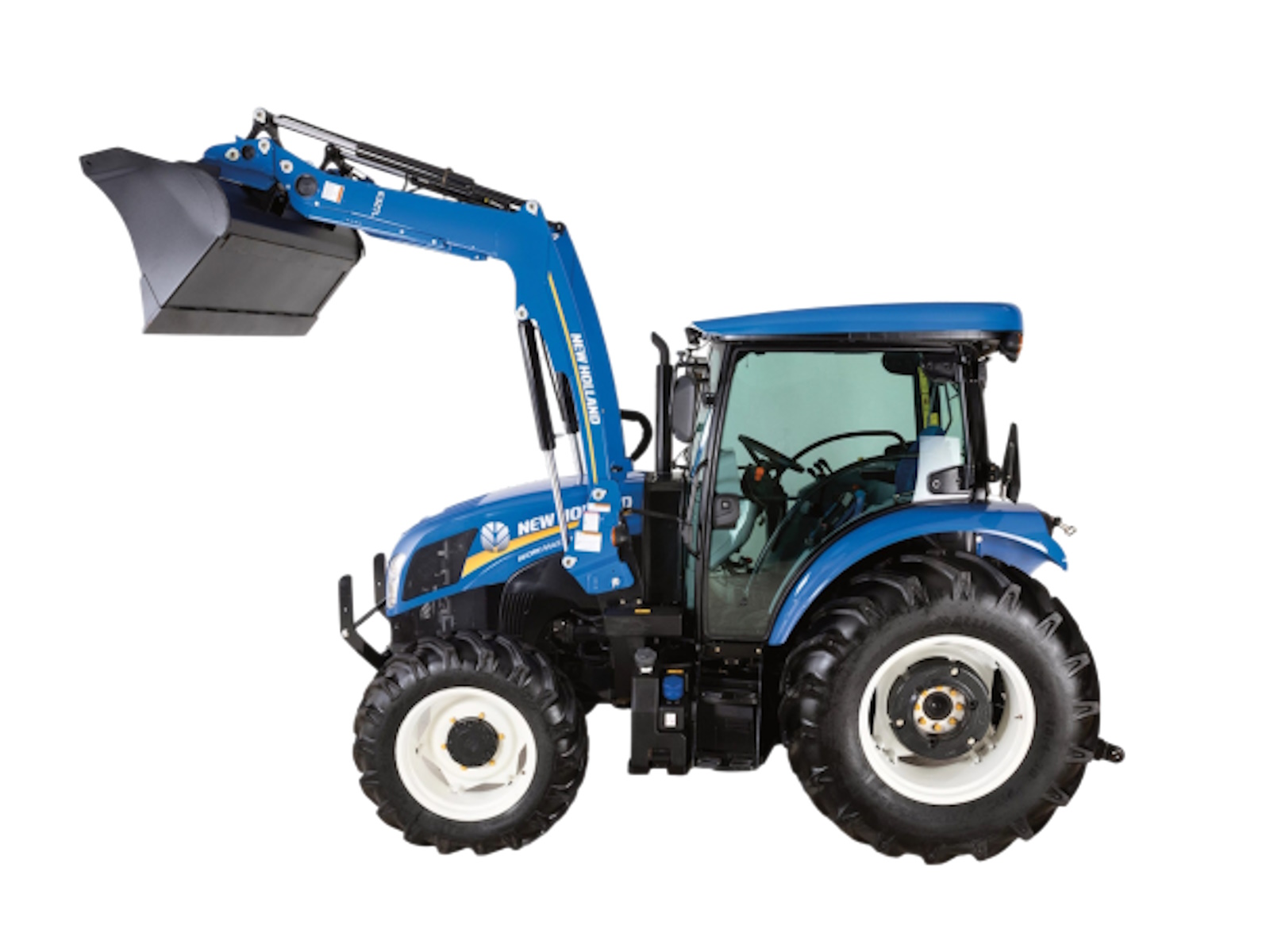

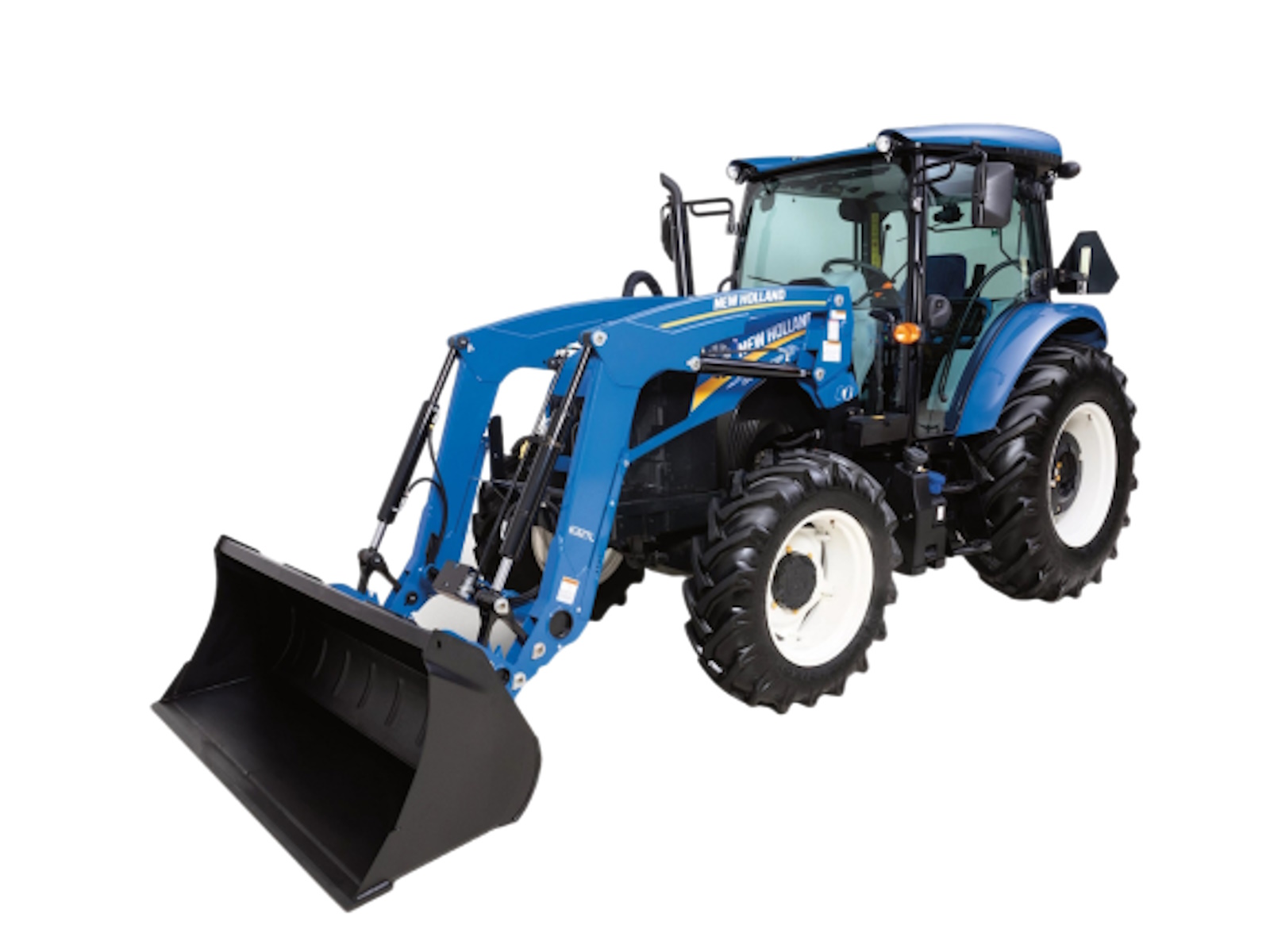

• Performance Matched Loader: WORKMASTER utility tractors are ideal loader tractors. Installed at the New Holland factory, the non self-leveling 632TL front loader integrates perfectly with the WORKMASTER 95, 105 and 120. A mechanical self-leveling 637TL is also available for those who want to enhance their productivity.

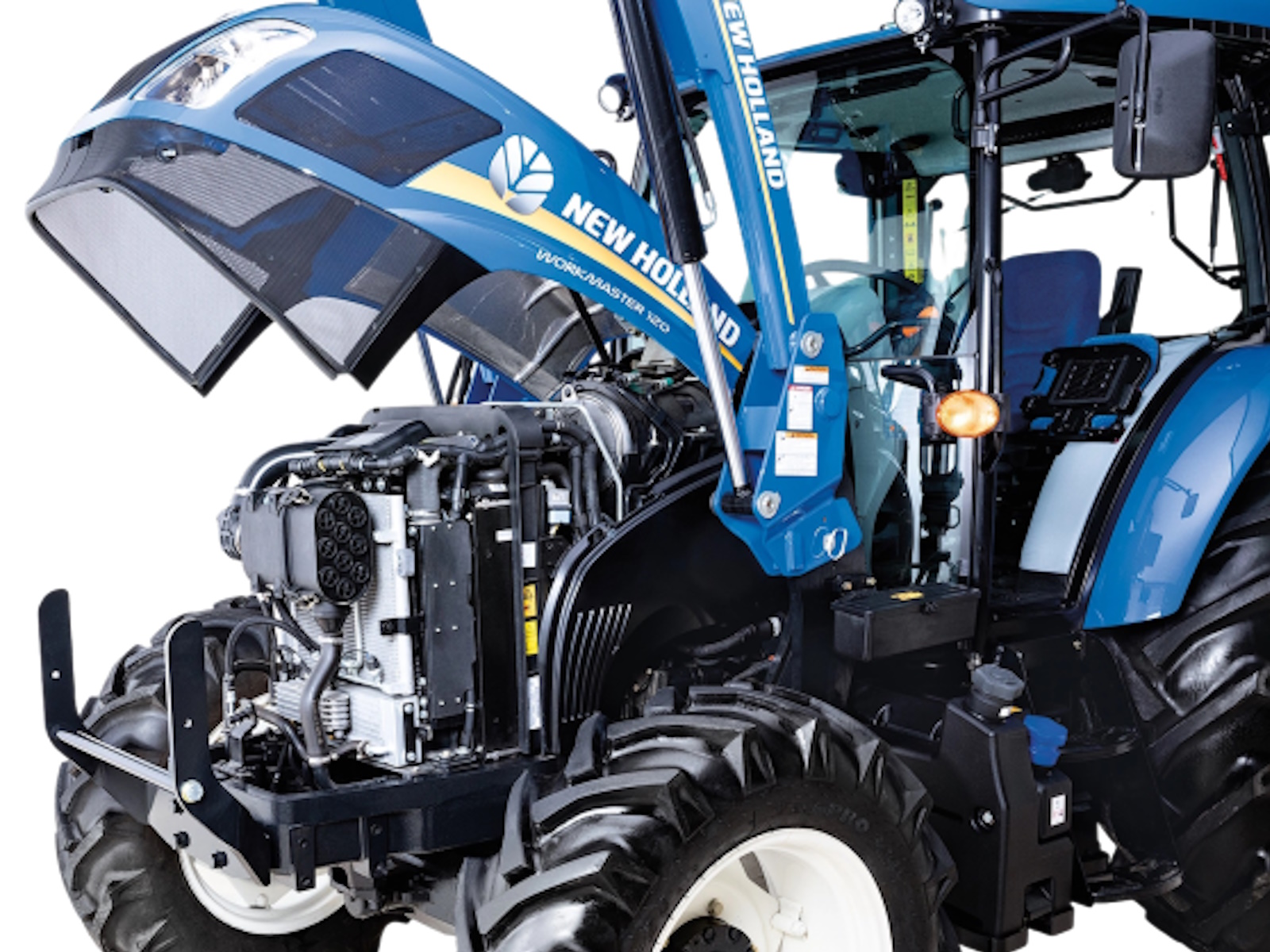

• Easy Servicing: A WORKMASTER™ is the best tractor for saving you time and money when it comes to maintenance. Convenient access to service points makes fueling up and performing routine maintenance quick and easy. Even when a loader is attached, it’s easy to get under the hood of your WORKMASTER. Just open the hood to access the engine, radiator, air cleaner and more.

• Make: F5
• Type: 4-Cylinder Diesel
• Displacement cu. in. (L): 207 (3.4)
• Gross engine horsepower: 120
• PTO horsepower: 100
• Rated Engine Speed rpm: 2,300
• Emissions Tier 4B: SCR + CUC

• Standard: 12X12 Power Shuttle

• Lift capacity @ 24” lbs. (kg.): 3,200 (1451)
• Optional ram @ 24” lbs. (kg.): 6,200 (2812)

• Rear remotes: 2 or 3
• Imp. pump gpm (L/min): 16.9 (64) / 21.6 (82)
• Service pump gpm (L/min): 9.7 (36)

• Base PTO RPM: 540
• Optional PTO: 540/1000

• Weight - Cab/4WD lbs. (kg.): 8,367 (3795)
• Weight - ROPS/4WD lbs. (kg.): 7,738 (3510)
• Minimum height - ROPS pivot in. (mm): 71.9 (1828)
• Minimum height - Seat pivot in. (mm)*: 47.4 (1205)
• Overall height - Cab roof in. (mm): 105.4 (2676)
• Overall height - top of ROPS in. (mm): 103.0 (2617)
• Overall length - 4WD in. (mm): 161.1 (4091)
• Wheelbase 4WD in. - Cab (mm): 88.9 (2260)
• Wheelbase 4WD in. - ROPS (mm): 83.7 (2125)
